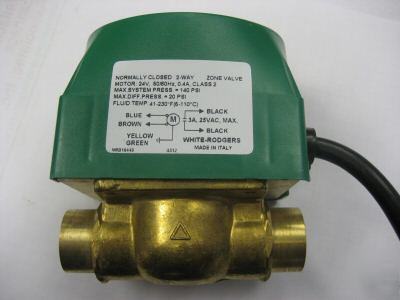

White rodgers 13SH16-102 3/4" sweat zone valve 24V
Zone Valve, (High Capacity - 7.0 cv) 3/4" Sweat Fitting, 24V, Normally Closed with Aux. Switch
• Lever for manual open (normally closed valves only).
• Auxiliary switch (optional).
• Return spring design – stainless steel for long life.
• Plastic molded cover provides extra protection from moisture.
• Swing-type ball valve made from EPDM (Ethylene Propylene Polymer).
– Rotating design results in less wear on valve.
– Raised ball design ensures positive valve closure and even surface wear.
• Valve body & crank arm assemblies each made from one-piece cast brass construction.
• Gears made from heavy 14 gauge brass for durable long life.
• Valve assembly design includes a recessed “O†ring for positive sealing.
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . 24 VAC
Frequency . . . . . . . . . . . . . . . . . . . . . . . 50/60 Hz
Connection . . . . . . . . . . . . . . . . . . . . . . 18
Flow Capacity . . . . . . . . . . . . . . . . . . . . 3.5 Cv
Close-off Pressure . . . . . . . . . . . . . . . . 20 PSI
Maximum Pressure . . . . . . . . . . . . . . . . 142 PSI
Maximum Temperature . . . . . . . . . . . . . 110°C (230°F)
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . Electric synchronous, spring return
Positioning . . . . . . . . . . . . . . . . . . . . . . 2-way, straight through
