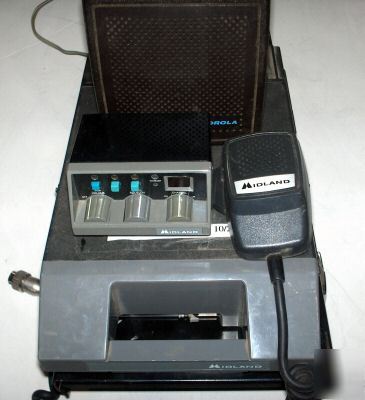

Midland vhf transceiver 70-482B, trunkmount 80 watts
These control heads have the following buttons:
* Mon(monitor) which which disables tone squelch
* Pri. (Priority) for use on priority channel.
* Scan to scan thru the frequencies you have programmed.
* The knobs are Off/Volume, Squelch, and Channel up/down.
* The programming determines how functions work, but this radio will scan and has priority function.
The 70-482 is a solid state VHF High Band transceiver designed to operate in the 136-174 MHz range.
Providing up to 80 channel capability and field programmable/eraseable/reprogrammable frequencies and options, these SYN-TECH models are designed to provide flexible communications for a variety of applications.
NOMINAL OPERATING VOLTAGE: 13.4 V DC (NEGATIVE GROUND)
FREQUENCY CONTROL: FREQUENCY SYNTHESIZED WITH EPROM PROGRAMMING.
FRQUENCIES OF OPERATION: 136-156 MHz (A-BAND)
RX-TX PERFORMANCE BANDWIDTH WITHOUT ADJUSTMENT: 24 MHz
CURRENT DRAIN: 0.35 A DC-STANDBY, 1.0 A DC-RECEIVE, 16A DC-TX
DIMENSIONS: RADIO- 2.5 X 7.25 X 14.1 in.
CONTROL HEAD- 2 X 3.5 X 3.1 in.
SCAN SPEED: 3-20 CHANNELS/SECOND
OUTPUT POWER: 80W , ADJUSTABLE 40 TO 80 WATTS
PROGRAMMING BY 70-1000 PROGRAMMER. Z-273 EPROM
