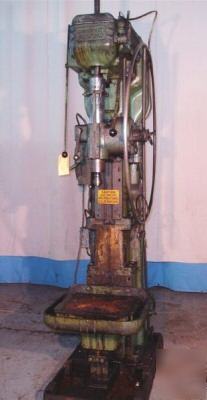

21" cincinnati-bickford production upright drill #23435
21" CINCINNATI-BICKFORD PRODUCTION
Serial No ND17, Model "Direct-Drive"
Spindle-Head Adjustment, Vertical....... 6"
Spindle Travel, Power................... 10"
Spindle-Nose to Table, Maximum.......... 45.24"
Spindle-Nose to Base, Minimum........... 41.75
Spindle-Nose to Base, Maximum........... 57.75"
Swing to Center of Circle, Table........ 20.75"
Swing to Center of Circle, Above Table.. 23"
Table Adjustment, Vertical.............. 12"
Table Working Surface, W x L............ 16.5" x 21"
Spindle Diameter........................ 3.81"
Spindle Taper........................... #4 MT
Spindle Speeds, Range................... 75 to 1800 RPM
Weight, Approximately................... 2800 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $950.00
All machines/equipment subject to prior sale.
