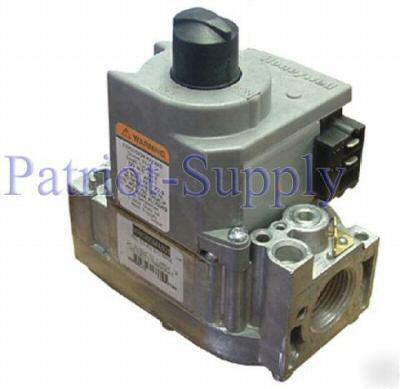

Honeywell VR8305M4801 24V dual direct ign gas valve
24 Vac Dual Direct Ignition Gas Valve with 3/4 in. x 3/4 in. inlet/outlet,
standard opening and 3.5 in. wc pressure regulator setting
***OEM VALVE - COMES BRAND NEW UNBOXED***
24 Vac Dual Direct Ignition Gas Valve with 3/4 in. x 3/4 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
Opening Characteristics (standard, step)
300,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Regulator Setting (psi)
Pressure Regulator Setting (kPa)
0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
5 3/8 in. high x 5 1/16 in. wide x 2 11/16 in. deep
135 mm high x 129 mm wide x 69 mm deep
Approvals, American Gas Association IAS
AGA Design Certificate: L2025006
Approvals, Canadian Gas Association
CGA Design Certificate: L2025006
Approvals, Underwriters Laboratories Inc
UL Component Recognized: MH8191
Approvals, Australian Gas Association
Australian Gas Assoc. Design Certificate: 4214; Approved for Delta C Applications
