Tektronix TDS784D/13/2F 1GHZ 4CH 4GSA/s oscilloscope
Tektronix TDS784D/13/2F 1GHz 4CH 4GSa/s Oscilloscope
200,000 Maximum Waveform Capture Rate
8-Bit Vertical Resolution, Over 11 Bits with Averaging and Over 13 Bits with Hi-res
1 mV/div to 10 V/div Sensitivity
29 Automatic Measurements and Measurement Statistics
Communication Signal Analysis Including Mask Testing and SONET/SDH and Fibre Channel Optical Reference Receivers
Communication Compliance Testing
The TDS784D Digital Phosphor Oscilloscope
Digital Phosphor Oscilloscopes deliver a level of insight that makes dealing with complex signals elementary.
DPOs capture, store, display and analyze, in real time, three dimensions of signal information: amplitude, time and distribution of amplitude over time. The benefit of this third dimension of information is an interpretation of the signal dynamics, including instantaneous changes and the frequency of occurrence displayed in the form of quantitative intensity information.
The resulting information-rich display enables the user's eye to integrate the subtle patterns and variations of actual signal behavior.
Extensive user interface design has made the TDS784D truly intuitive to operate. Its familiar front panel layout offers dedicated vertical, horizontal and trigger controls. A graphical user interface with over 200 icons helps facilitate understanding and use of the advanced features. A color monitor helps rapidly distinguish between multiple waveforms and measurements. Online help provides a convenient built-in reference manual.
High Fidelity Signal Acquisition
Channels can be transparently combined to achieve higher sample rates and longer record lengths. The record length can be optionally increased to 8 M points, providing a high-resolution representation of the signal over a long period of time.
The TDS784D also provides wide dynamic range, flat response, fast overdrive recovery, calibrated DC offset, 1 mV/div sensitivity, 1 ns peak detect and internal calibration.
Powerful and Flexible Triggering
In addition to basic triggering such as edge and pulse-width, this digital phosphor oscilloscope has several trigger modes tailored for specific design and debug applications. Logic and pulse triggers, including setup/hold, glitch, slew rate and timeout triggers, capture hard-to-catch digital design problems. The optional video trigger provides line and field selection for NTSC, PAL and HDTV standards. The optional communications trigger capability addresses needs to acquire a wide variety of AMI, CMI, NRZ and Ethernet communication signals.
Accessories included: Copy of Operator's Manual

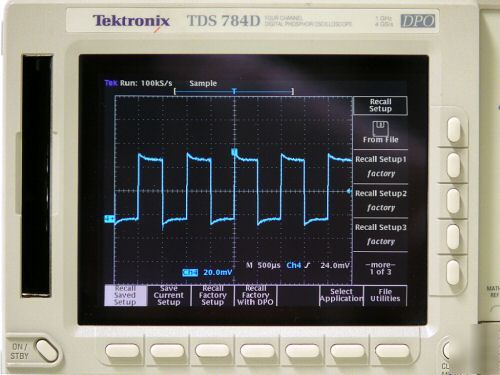

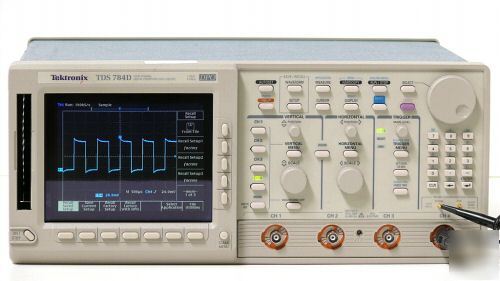

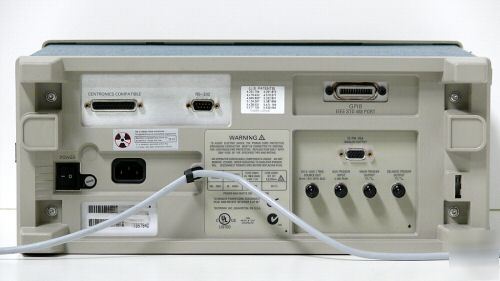

More about the instrument: Serial number: B010206. Option 13 is RS 232C + Centronics hard-copy interface. Option 2F is extended waveform math FFT, INT, DIFFER. As you can see in the pictures, it is in good condition with few signs of wear and tear. All photos on this page are of the actual item offered here. NOTE that the floppy drive has been removed.
Guaranteed to be clean and operational, with 14-day right of return
