New comet mxr-160/21 unipolar metal ceramic tube
New in Original Factory Box Comet MXR-160/21 Unipolar Metal Ceramic Tube (062806608260)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

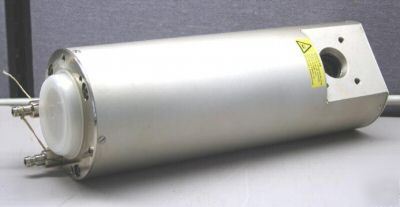

New in Original Factory Box Comet MXR-160/21 Unipolar Metal Ceramic Tube
* Manufacturer List Price: $14,243.00
* Our Cost from Manufacturer: $11,394.00
* Manufactured Date: July 1996
* The COMET Unipolar Metal Ceramic tubes are designed for use in demanding industrial applications like Non-Destructive Testing, Food Inspection and Thickness Gauging. The tube assembly consists of an Unipolar X-Ray tube with cooled anode at ground potential and a high voltage receptacle socket. The X-Ray proof tube housing has fittings for water hose connections.
* The main advantages are high power, small dimensions, low weight and rugged mechanical design.
* Ordering Number: 915302.51
* Nominal Tube Voltage: 160 kV
* Continuous Rating: 640 W / 1600 W
* Focal Spot Acc. EN 12543: d = 1.0 mm / d = 3.0 mm
* Former Focal Spot Designation: 0.4 / 1.5
* Filament Current, Max.: 4.1 A / 4.2 A
* Filament Voltage, Typical: 4.2 V / 5.5 V
* Inherent Filtration: 0.8 mm Be
* Leakage Radiation, Max.: 2.5 mSv/h
* Cooling Medium Flow, Min.: 4 l/min
* Temperature at Inlet, Max.: 35°C
