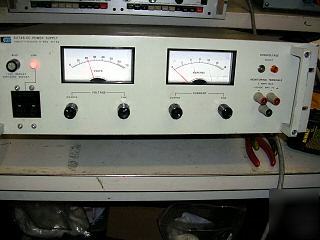

Agilent hp power supply 6274 60V 15A tested
* Auto-series, auto-parallel, and auto-tracking operation
* <50us load transient recovery
* Output ratings (0 - 55 ° C): 0-60 V, 0-15 A
* Ripple and noise (20 Hz to 20 MHz): CV: 200 uV rms, 20 mV peak-to-peak; CC: 5 mA rms
* Load regulation: 0.01% + 200 uV, 0.02% + 500 mA
* Line regulation: 0.01% + 200 uV, 0.02% + 500 mA
* Physical Specifications: Weight: 21.7 kg (48 lbs); Dimensions: 483 mm W x 127 mm H x 479.4 mm D (19 in x 5 in x 18.88 in)
The Agilent HP 6274B is a high-performance constant voltage/constant current power supply with an output rating of 0-60 Volts. The 6274B employs a transistor series-regulator/triac-preregulator circuit to achieve high efficiency, excellent regulation, low ripple and noise, and moderate programming speeds in a compact full-rack width package.
Additional features on the 6274B Power Supply include built-in overvoltage crowbar protection; remote error sensing; and auto-series, auto-parallel, and auto-tracking operation. The crowbar trip point adjustment and associated overvoltage indicator are conveniently located on the front panel.
THE UNIT COMES WITH A POWER CORD AND A DOMESTIC DOA WARRENTY. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING.
