Multimeter adapter tool for mini blade fuses to fluke

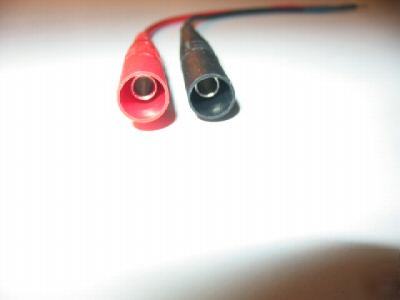

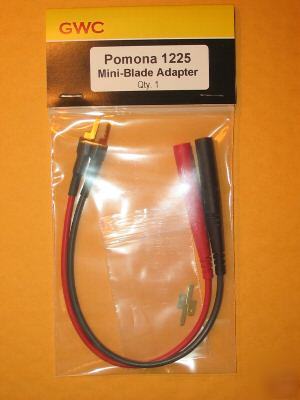

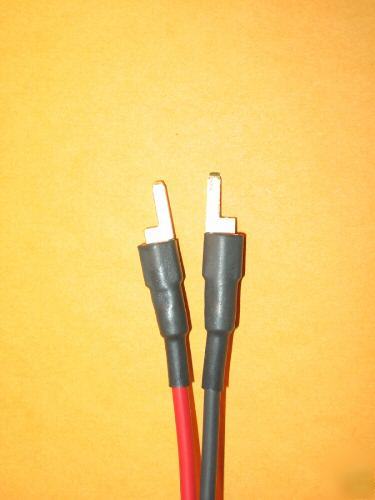

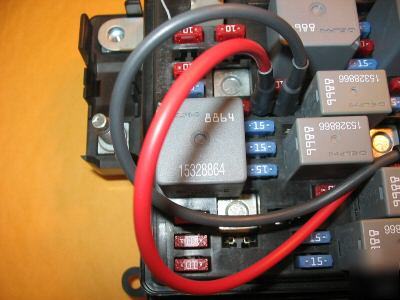

Brand New item that will adapt your 4m plug ended test lead set (industry standard size) to our Mini-Blade (ATM) fuse cavity adapter. Used to gain access to measure current from automotive circuits via the fuse box, Panel, UBEC's. This adapter tool fits tight spots like cavities adjacent to relays as shown in the fuse box photo below. Makes current measurements easy! Ideal for parasitic loads, Fuel Pump amperage, BCM going to sleep, and many others. Specifications: 10" length, 2.8mm x .80mm flat male brass ends (replaceable ends)...4mm female ends. 10 Amps continous, 20 Amps momentary rated. Made in the USA with Pomona components by GWC of Arizona. One Year Manufacturer Warranty.
NOTE: Not to be used with a Multimeter where a circuit fuse is blowing or exceeds your meter fuse rating.
1. Remove mini-blade fuse from cavity and place adapter ends into fuse cavities.

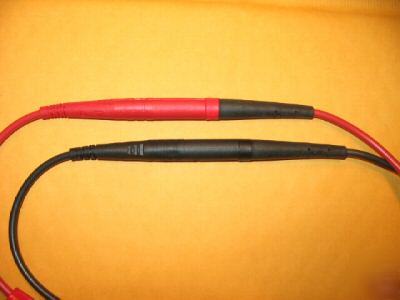

2. Install female (Jack) ends (red & black in color) onto your test leads.
3. Set your Multimeter to amps, highest range, then plug in lead set to meter 'COM' & 'A'
4. Activate circuit being checked, and observe your current reading.
Arizona Residents Only: 8.1% Sales tax will apply
