255GAL 316LSS sanitary homoginizing mix tank

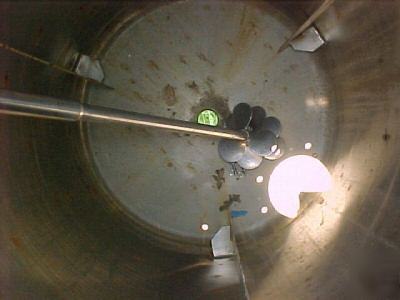

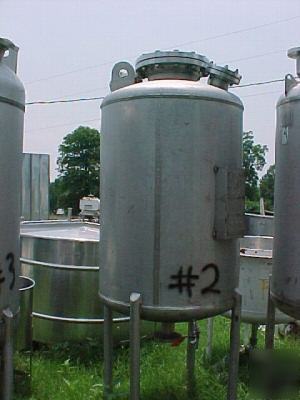

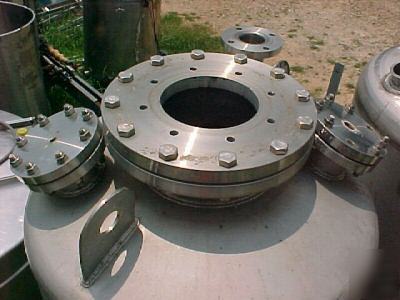

1ea 255 Gal Hicks Eq Stainless 316L Pressure Homogenizing Mix Tank Sn-3-93143-1 Mfg Date 1993 - Max Working Temp: 119PSIG @ 100 F - Min Design Temp: -20f @ 119 PSI - Interior Baffles 3ea - NB#128 - Shell Thickness .250" - Head Thickness .375" - Head Dish Radius 36" - 19" Diameter 12 Bolt Flanged Top Manway - 14" Diameter 8 Bolt Mixer Flange thru Manway & 8.5" Opening -2ea 8 Bolt Flanged Top Openings with 4.5" Threaded Openings - Mixer Shaft with one 3 bladed prop - 1ea 4 Bolt Flanged Top Opening with a 3" Threaded Opening - No Drive Unit - Center Bottom 4 Bolt Flanged Discharge Connection with a 3" Opening - Legs 4ea 2.5" Diameter X 44" Long - 7" Deep Dished Bottom Head - 48" Side Straight Wall - Over All Height w\Legs 103" - 3\4" Sample Cock - Marked #2 -
