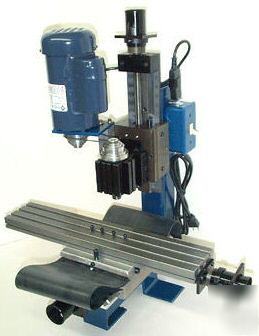

Taig 2019CR cnc ready mill - micro mill
Micro Mill factory assembled - 2018CR
* 2019 (with ER 16 SPINDLE) converted to CNC ready
* Adjustable bronze leadscrew nuts
* Upgraded 1/4 horse power motor .
* Does not include stepper motors or control system.
Have questions? Drop us an email or skype us anytime. For a company directory click here
* Height 26-3/8 in, Width 22 in, Depth 21 in
* Maximum bearing runout 0.0004 in.
* X axis dovetails 45 deg, Y axis dovetails 90 deg, Z axis steel box ways
* 1/2"-20 leadscrews on X,Y,& Z
* All lead screw drives have friction adjustable micrometer dials in .001 inch increments
* Pulley type std. 5/8 in. bore multi-step vee belt.
* Construction - Steel, hard anodized aluminum on all moving components, adjustable brass gibs, and precision ground steel ways hand lapped for long life and accuracy.
* Travel in X axis 12 in, Y axis 5.5 in, Z axis 6.0 in
* Table dimensions 3 1/2 x 18.4 inches
* Maximum Z-distance to table 9.0 in
* 6 spindle speeds 1000-10000 RPM
* Z axis column rotation up to 180 degrees
* Spindle head rotation 90 degrees
* Max spindle speed 10000 RPM
* Sealed precision ball bearing
* Bearing OD 1.5748 in., ID 0.6692 in.
* Spindle nose 3/4 in. - 16 (3/4 in. SAE)
* Spindle ID taper 15 deg (30 deg included)
* Max. collet diameter 9/32 in.
* Ball Bearings in all leadscrew bearing blocks
