0.25" SHEAR, Pressmaster MS-25-5 w/CNC BACKGU
0.25" SHEAR, Pressmaster MS-25-5 w/CNC BACKGU

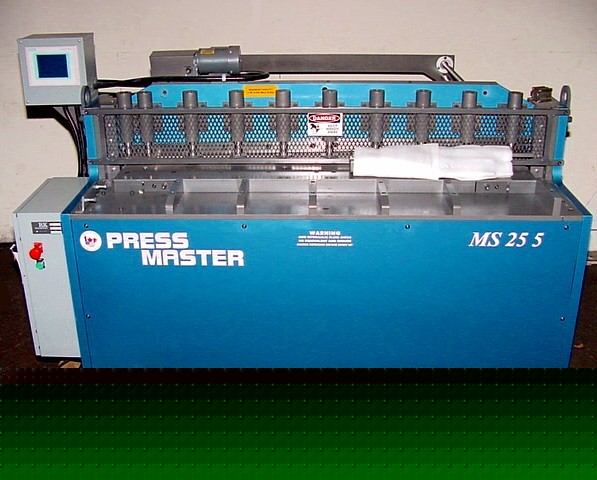

PRESSMASTER MODEL MS-25-5 HYDRAULIC SHEAR
1/4" x 61" SHEAR w/NC BACKGAUGE
CUTTING CAP. .............................. 1/4"
CUTTING LENGTH ............................ 61"
RAKE ANGLE ................................ 1.5" / 62"
SPM ....................................... 20
NUMBER OF HOLDDOWN CYLINDERS .............. 10
MOTOR ..................................... 10 HP 1760 RPM
VOLTAGES AVAILABLE ........................ 230/460/575
TABLE DEPTH ............................... 18"
TABLE WORK HEIGHT ......................... 34"
FOOTPRINT ................................. 72" LONG
WEIGHT .................................... 4,000 LBS.
- EQUIPPED WITH FULLY INTEGRATED HYDRAULIC UNIT,
- A MOTORIZED FRONT OPERATED BACK GAUGE, WITH
DIGITAL READOUT AND FINE HANDWHEEL ADJUSTMENT.
THIS DIGITAL READOUT FEATURES FRACTIONS OR
DECIMALS AND AN INCH/METRIC SWITCHABLE DISPLAY
- ELECTRIC SOLENOID HYDRAULIC VALVING FOR
- CLEAN HYDRAULIC OIL IS ASSURED BY A RENEWABLE
CARTRIDGE TYPE FILTER IN THE RETURN LINES.
- REMOTE FOOT PEDAL CONTROL, IF RELEASED ANYWHERE
IN THE STROKE THE BLADE RETURNS TO THE "UP"
- LOW PROFILE DESIGN, UNDER-DRIVEN. TWO DOUBLE
ACTING CYLINDERS WORKING UNIFORMLY.
- BLADES MADE FROM D2 HIGH CARBON PREMIUM QUALITY
- THE BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
- THE TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH
5 DEGREE BACK BEVEL TO ENSURE A CLEAN CUT.
- LOW RAKE ANGLE TO MINIMIZE WORKPIECE DISTORTION.
- SQUARING ARM COMPLETE WITH MEASUREMENT
ARE ROUNDED, THIS ALSO PREVENTS MARRING MATERIAL
- LOW SPEED BALDOR ELECTRIC MOTOR.
- FULLY ENCLOSED CONTROL PANEL COMPLETE WITH LOW
- THE FRAME IS MADE FROM A SOLID STEEL WELDED
CONSTRUCTION, GIVING MAXIMUM RIGIDITY.
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD
IN THE INDUSTRY, MADE IN THE USA OR CANADA, AND
READILY AVAILABLE ALMOST ANYWHERE.
Machine Location: HARRISON, NJ
