900 ton lauffer lamination press up-acting 32" x 48"

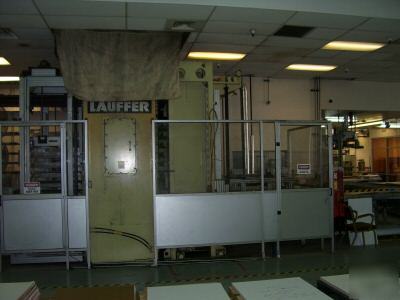

(1) Used 900 Ton Lauffer Up-Acting Hydraulic Press; All Steel Construction;
Straight Side Design; 4 Point Ram Guides/Gibbs; MFG. 1998
Capacity……........................................ 900 Ton @ 2120 PSI
Bed Area............................................... 32” F-B x 48” L-P
Ram Area …………..……………...… 32” F-B x 48” L-P
Distance Between Housings…………. 67” L-R
Stroke of Ram (Slide)………………... 22”
Daylight Opening ……………………. 47”
Distance Floor To Ram………………. 56”
Main Ram Diameter (2)……………… 17 ½” (normal)
Advance (close)……………… 50 in/min
Return (open)………………… 80 in/min
Hydraulic System……………………... Variable Volume Pressure Compensated
Electrical Characteristics…..………….. 480 VAC/3/60
Type of Platen Heating………………... Electric/Liquid/Gas
Platen Temperature……………………. 750 degrees Fahrenheit (max)
Platen Thickness………………………. 3 3/8”
Complete Hydraulic System With Reservoir (Floor MTD.)
Complete Electric Controls With Operators Control Station
Complete Platen Heating System Controls
7- Liquid/Gas Heated Platens: 33” x 48” x 3 3/8” Thick
5- Electrically Heated Platens: 33” x 48” x 3 3/8” Thick
(Optional) Electrical Platens with New Elements $9,450(additional)
42” F-B x 91” L-R x 11’-2” Height
FOB................................Casa Grande, Arizona
