Hp 3326A dual channel synthesizer w/option 001, 003

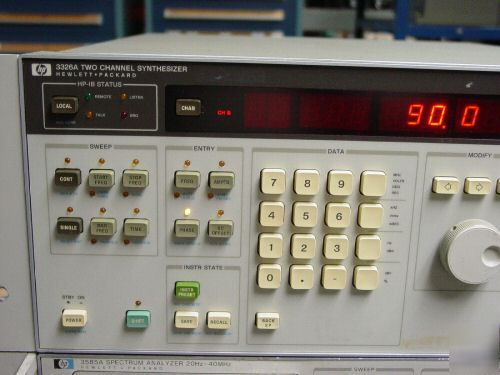

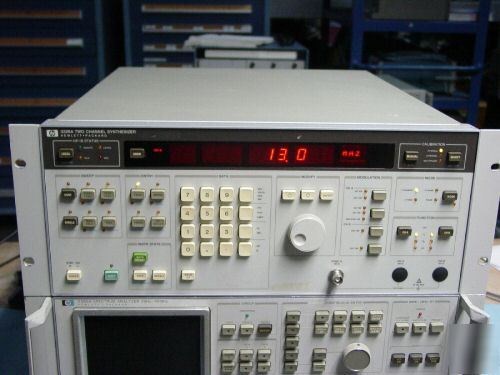

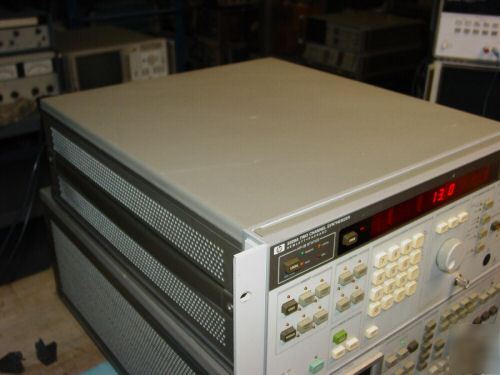

HP 3326A Two-Channel Synthesizer w/ Option: 001, 003
HP 3326A Two-Channel Synthesizer combines two independent synthesizers, flexible modulation and control circuitry into one single powerful package. This single instrument provides precise phase offset,two-tone sweep, fast frequency swithing, internal modulation, and pulse singnals for bench or system use.

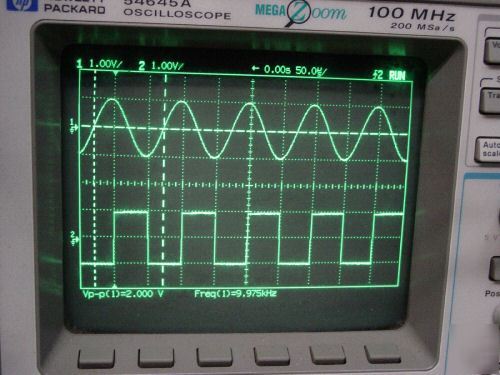

Functions: sine, triangle, square, negative & positive ramps
Option 001 = High Stability Time Base

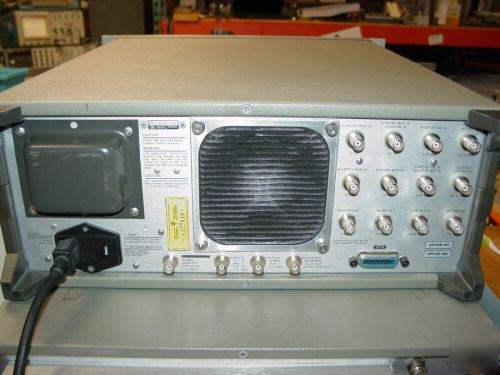

Option 003 = Rear Panel Output

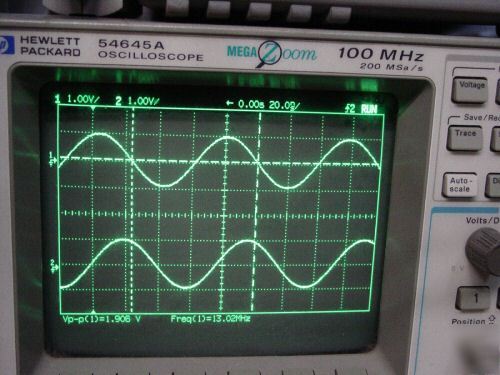

* Frequency range: dc to 13 MHz
* Resolution: 1 µHz <100 kHz, 1 mHz >100 kHz
* Frequency stability: ±5x10-6/yr

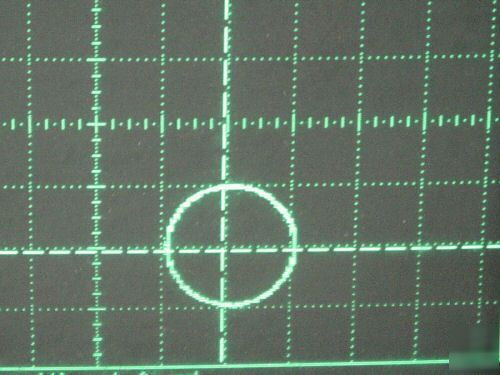

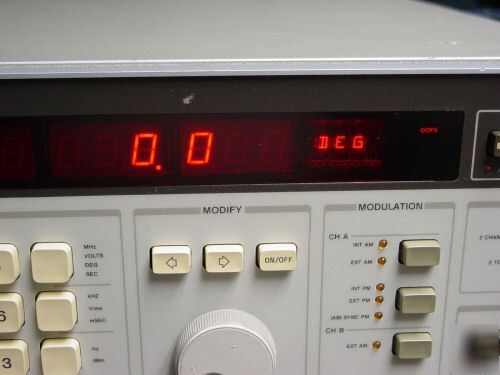

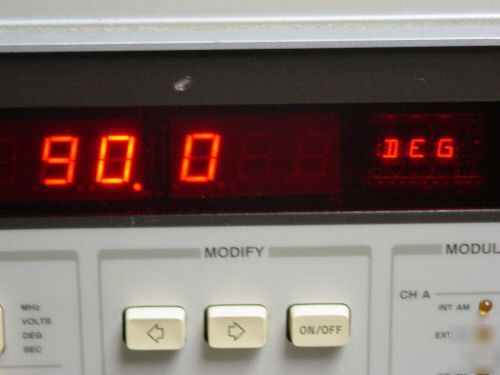

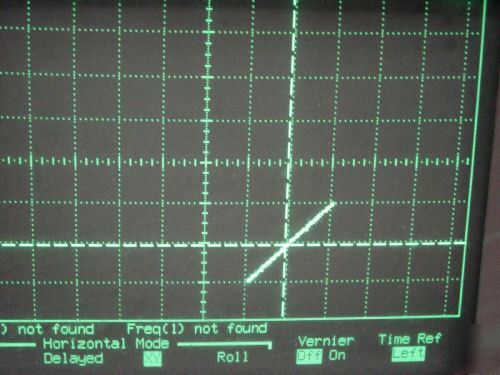

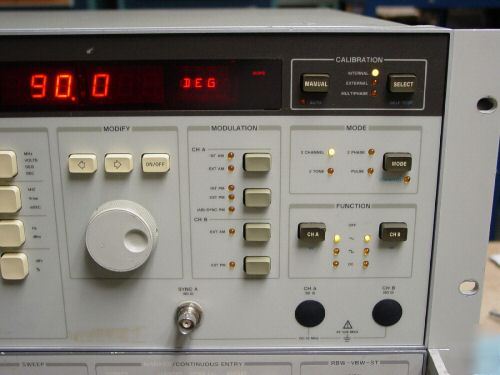

* Phase offset - phase lock modes: resolution: 0.01°, range: ±720°
* Output amplitude: 1 mVpp to 10 Vpp into 50 ohms
* Nine store/recall registers
* Output connectors: BNC(f)
* 100, 120/220 Vac ±10%, 240 Vac +5% -10%; 48-66 Hz operation
* Weight: 60 lb; Size: 177 mm (7.0 in)H x 426 mm (16.75 in)W x 498 mm (19.63 in)D
