Ibp/pedrazolli 350SA perrious non ferrous cold saw

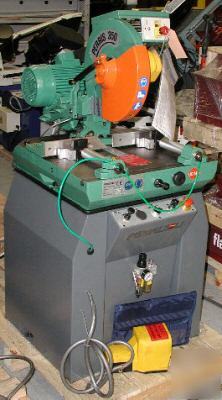

ONE(1) NEW IPB/PEDRAZZOLI MDL 350SA PERRIS
NON-FERROUS COLD SAW SERIAL NUMBER: NEW MACHINE
CAPACITY - ROUNDS: 4" AT 90 DEGREES - ROUNDS: 3 1/2" AT 45 DEGREES - RECTANGLES: 5 1/2" X 3 1/2" AT 90 DEGREESSPEED - with pulley: 2400/3400 RPM - APPROXIMATELYBLADE SIZE: 350mm ( 14")MITRE CAPACITY - LEFT: 60 DEGREES - RIGHT: 45 DEGREESCOMPOUND MITRE: 45 DEGREES OFF VERTICAL Dba - Approximately: 89 EQUIPPED WITH:• Mechanism for the rotation of head block for angled cuts - up to 60° left , 45° right and 45° off the vertical.
• Two pneumatic vices adjustable both lengthwise and laterally.
• Pneumatic cylinder for head movement, with brake for speed adjustment.
• Two speeds of blade rotation obtainable by means of inversion of the pulleys.
• Perfectly balanced head, tilting upon shielded ball bearings.
• Drive pedal for semi-automatic cycle.
• Push button control with key on control panel for lock out.
• Clam Shell style blade guard with rapid blade change system.
• Pedestal in welded metal sheet, 49 kg.
• Instruction book for use and maintenance.
• Set of wrenches for the maintenence.
