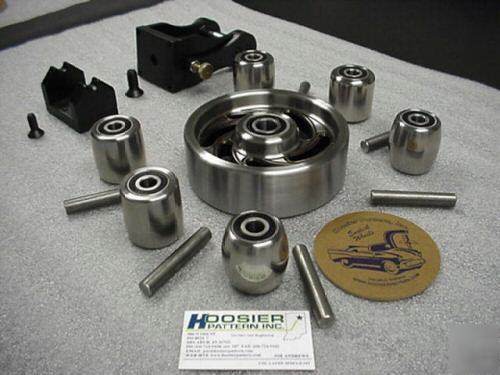

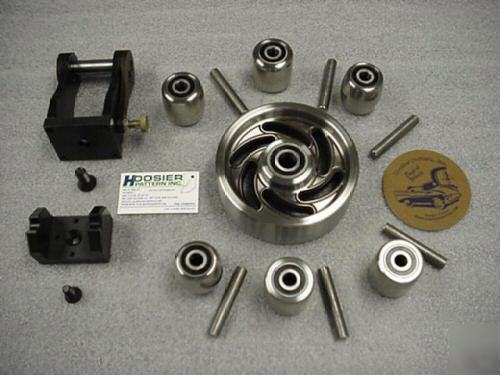

Motorcycle complete 2" billet english wheel set
This is a Professional Set, if your new to Metalshaping and want a Cheap Starter Set Click the view Sellers other Items Button, we have The Cheapest Price Ever for an English Wheel set of Wheels.
This Means that if the Item is; Delayed, Lost, Damaged or Whatever We Are Not Responsible.
Who are We? Can you Trust Our Quality? Want Answers?
Go to which is the Worlds Largest Metal Shaping Community. This site is Full of Guys and Gals doing Everything you could imagine when it comes to Body Repair, Scratch Built Cars and Bikes, Airplane Repair, Artist, Fabricators, and Guys and Gals just tinkering around. Metal Meet has an International Meet once a Year in centrally located Oblong IL, and Many of it's Members host Smaller Regional Events to further Share the Metal Shaping knowledge. My user name on Metal Meet is Joe Andrews, the Company Hoosier Pattern either name can be searched on Metal Meets Site.

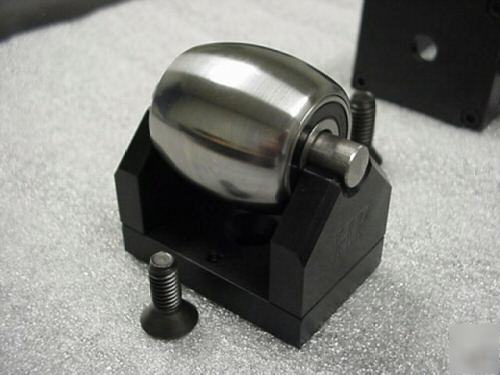

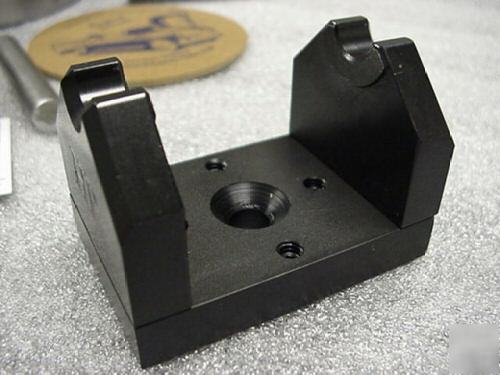

Custom Machined Anvils and Upper Wheel and Yokes including our Quick Release Upper Lifter.
Custom Machined By Hoosier Pattern Inc.
If you’re going to do it, Do It Right!
No other English Wheel Manufacturer guarantees a minimum runout like we do!
You may wonder if runout critical? The answers can be found on
If you don't want to go there I'll tell you. Runout is very crucial to how your machine functions. If you have a weak machine that "flexes" then runout may not be so bad, but the flex is very bad because it causes your wheels to lose alignment. On a rigid Machine(best case scenario) runout can only be compensated by extreme pressure on your machine. Extreme pressure is no good for many reasons...It causes you to overstretch your panels which causes distortion, and it's very hard on the mechanical components such as lead screws, cradles, welds, and so on. With a well built rigid Machine it's amazing just how little pressure it takes to start shaping your panels.
After you have made your panel you will want to do a "WashOut". A Washout will save you so much work! This is done by using the largest possible contact keeping in mind the radius or "form" on your panel. Gently bring the Upper and Lower Wheels to where they just touch your panels surface, then simply work the panel back and forth through your Machines Wheels. This Process will blend your high and low spots making for an Extremely beautiful panel when completed.
I was looking around and found that many Manufacturers of Anvils not only don't guarantee their runout, they also don't list what their Wheels are made from!
COMPARE OUR PRICES TO Metal Ace's here at this link -> http://www.englishwheels.net/products/products.html
3" Anvil Wheel and Yoke Set for 44F
2.375 R, 3.25 R, 5.00 R, 8.50 R, 12.00 R and flat.
MetalAce 3" Anvil Wheel Set..................$768.00 set
HOLY SMOKE! Our every day price on this set of 3x3's Lower Anvils is only $353.00!!!
Their Anvils have NO Contacts, Guarantee on Run-Out, and who knows what they are made from! So be ready to work your butt off!
Our Upper Wheel is much more Expensive than theirs, but the differences are like night and Day. Here is their price, but what diameter is it?
Upper Wheel with Axle, Spanner..................$185.00
Our Upper Wheel is $308.50 which is $123.50 more, but here's the differences:
Ours is Rough Machined, then Heat Treated to 52-54 Hrc and finally Finish Machined, theirs is Prehard 4140 at 29Hrc.! Our Upper Wheels have the faces relieved, theirs has a little step and weighs about 35lbs more! If you don't kill yourself from making so many passes on the lower Anvils because of full radius's you will from the weight of the Upper Wheel.
Our Upper Wheel is Machined from 4140 Alloy Steel, and it is a solid Billet like all of our High End Upper Wheels. This Wheel has been hardened to 52-52hrc on the Rockwell C scale, that's very hard. These are not like the other guys cheap pre-hard Wheels, this Upper is made righteously! This Upper will outlast your Machine and your Grandchildren as well.
Specifications on These Wheels....
This is an Awesome Wheel and it's also the Standard Upper Wheel on Every one of Our Model 18 Machines. Triple Tempered in a Vacuum Furnace to 52-54 Rockwell and Oil Quenched, Then Finish CNC Machined .
and a Flat with 1/8th" edge breaks
Every Corner is Radiused on our Anvils and Upper Wheels, NO SHARP EDGES HERE otherwise you invite lines to your panels! Every Anvil has been polished and the contacts have beautiful transitional radius's to create perfect panels free off pinch lines that come from Wheeling!

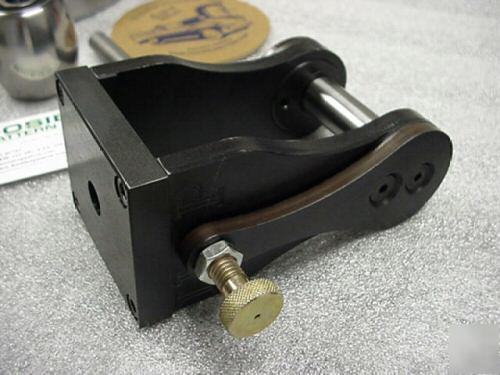

Included with this set is Our Brand New "Hoosier Lifter" This Upper Yoke will raise the Upper Wheel a ½" off your Panel. This enables you to Quickly change the Lower Anvil as well as being able to remove the panel to check your form. Putting the Panel back into the Machine is simple with this Lifter, and it enables you to not have to Wheel back over areas on a panel that are already finished. Being able to lift the Wheel a ½" off the work piece is Great because some shapes like High Crowns, Headlight Buckets, and Gas Tanks make removing the Panel a Task. Screwing a Jack many turns to remove a panel then screwing it again to get back down to the same point gets tiring fast! Do it Right with this Lifter and never make an adjustment to your Machine when checking your work piece out. There is a Spring loaded Pin that you pull out slightly, then turn the handle 90 degrees and you've moved a ¼", turn it another 90 degrees and your at a ½". Rotate it back to the original position and the Pin pops in a Hole locking the Yoke in Position.
THIS IS EVERYTHING YOU NEED TO BUILD YOUR MACHINE EXCEPT FOR 2 THINGS, A FRAME AND ADJUSTER. WE SELL ADJUSTERS IN OUR E-BAY STORE! WE ALSO SELL COMPLETE MACHINES UTILIZING THESE COMPONENTS, PLEASE SEE THEM IN OUR E-BAY STORE AS WELL.
Want to Upgrade this Set to Bigger Wheels?
2x8 Upper instead of the 2x6 cost $68.00 more.
Our larger Quick Release Lifter for the 2x8 is only $11.00 more.
2x3 Lower Anvils instead of 2x2's cost only $35.00 more.
If you have questions regarding anything to do with this Set please don’t hesitate to ask, e-mail ****@hoosierpattern.com
or call me Toll Free at 1-(***)-480-4870 ask for Joe
E-mail me at home after hour at ****@mchsi.com
