> 125/30 hp jaygo tank mounted co-axial disperser - 22060
125/30 hp jaygo tank mounted co-axial disperser - 22060

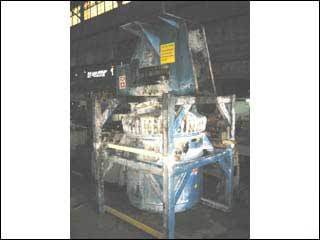

"ONE (1) Used 750 gallon Jaygo Co-Axial Tank Mounted Mixer, Model 750TS/Co-Axial, carbon steel construction, 60" diameter x 72" straight side, removable dish top, dish bottom, rated 100 PSI and full vacuum internal at 125 degrees F, jacketed on straight side for 15 PSI at 125 degrees F, 125 H.P. Two Tier Disperser thru Merger Corp. Gear Box rated 5.726:1 ratio, approx. 30 H.P. variablespeed anchor agitator with bottom and side wall scrape thru Merger Corp. Gear Box rated 43.889:1 ratio, 14" x 16" manway(1) 8", (1) 6", (5) 4", (2) 2", (2) 1" top ports, 12" centerbottom outlet, mounted in frame, Serial No. 5632, National Board No. 6-39, New 1990.
http:// /images/22060-01.jpg
http:// /images/22060-02.jpg
http:// /images/22060-03.jpg
http:// /images/22060-04.jpg
http:// /images/22060-05.jpg
