Tek 7613 storage scope w/ 7A15A, 7A18 & 7B70 *tested*

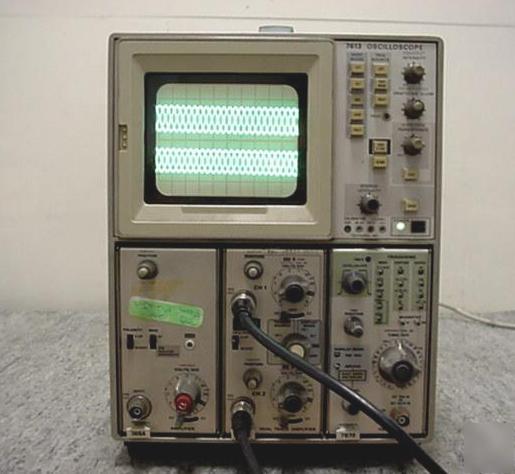

Tek 7613 Storage Scope w/ 7A15A, 7A18 & 7B70 *TESTED*
This 4 channel storage Oscilloscope Has Been Tested and is Working.
1 X 7A18 - Dual Channel Amplifier plug-in
The 7A18 Dual-Trace Plug-In Amplifier is the basic building block of 3-trace and 4-trace operation. The unit features constant bandwidth for all deflection factors, 5 operating modes (Ch1, Ch2, ALT, CHOP, ADD), trigger source selectivity and color-keyed control grouping.
Polarity of Channel 2 is selectable
Deflection Factor: 5 mV/div to 5 V/div
Input R and C: 1 Mohm within 2%; approx. 20 pF
The Tektronix 7B70 Time Base Plug-In provides bandwidth / sweep speed compatibility with any 7000-Series mainframe, horizontal amplifier input for uncalibrated X-axis deflection from an external source, and time/div range is from 2 ns/div to 5 s/div.
Local Pick up is also available at our office in Clayton South VIC 3169 with 24 Hrs Prior Notice.
