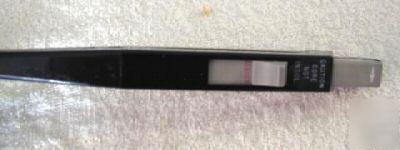

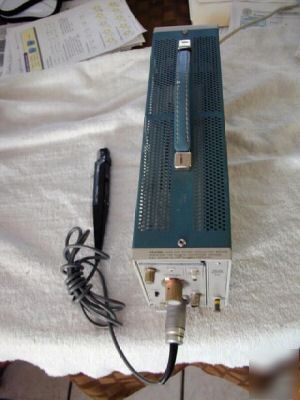

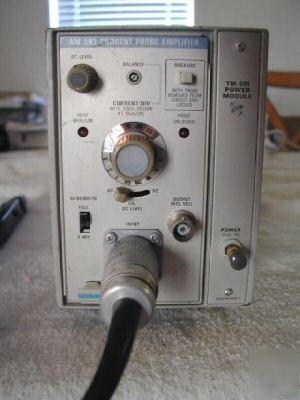

Tektronix am 503 current probe amplifier w/A6302 probe
Features: *Displays Current Signals on an Oscilloscope *Current Range, Maximum Current, and Bandwidth Determined by the Probe. *Allows display of current on any oscilloscope with 10 mV/div sensitivity, 50 ohms or 1 M ohm input. *Bandwidth can be set to Full (where it is limited by the probe in use) or to 5 MHz. *Coupling can be switch selected to ac or dc. Specifications: *Maximum Input Current - 20 A (dc + peak ac) for A6302; 100 A (dc + peak ac) for A6303. *Maximum Voltage for Current Under Test (Bare Conductor) - 500 V (dc + peak ac) for A6302; 700 V (dc + peak ac) for A6303. *Bandwidth (-3dB) - Dc to at least 50 MHz with A6302; Dc to at least 15 MHz with A6303. *Rise Time (Full Bandwidth) - 7 ns or less with A6302; 23 ns or less with A6303. *Deflection Factor - 1 mA/div to 5 A/div for A6302; 20 mA/div to 50 A/div for A6303.
Reasonable offers are well come! REASONABLE ONES!
