15"/23"X50" dashin/hipromac "geared-hd" eng lathe 24844

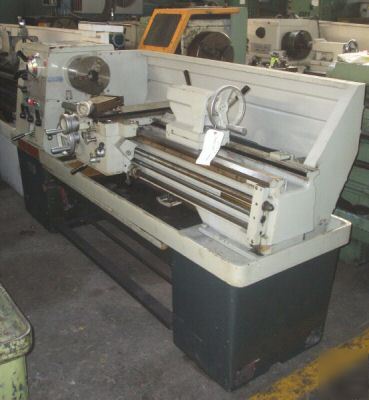

15"/23" x 50" DASHIN/HIPROMAC "GEARED-HEAD"
ENGINE LATHE w/TAPER ATTACHMENT
Serial No SC-C0015077, Model 1550
Induction Hardened Bed Ways & Gears
Full Length Splash Guard & Coolant-Chip Pan
Hole Thru Spindle...................... 2.19"
Swing Over Bed Ways, Rated............. 15"
Swing Thru Gap, Rated.................. 23"
Swing Over Cross-Slide................. 9.5"
Distance Between Centers............... 50"
Cross-Slide Cross-Feed Travel.......... 9.25"
Compound-Rest Travel................... 4.75"
Tailstock, Spindle Diameter............ 2.31"
Tailstock, Spindle Travel.............. 6.125"
Tailstock, Spindle Taper............... #4 MT
(16) Spindle Speeds, Range............. 25 to 2000 RPM
(45) Carriage Longitudinal Feeds....... .0015 to .040 IPR
(45) Cross-Slide Cross Feeds........... .00075 to .020 IPR
(45) Inch Thread Changes, Range........ 2 to 72 TPI
(39) Metric Thread Changes, Range...... .2 to 14 MMPI
Main Motor, Horsepower................. 7.5 HP
Overall Dimensions, L x D.............. 8' x 3'2"
Overall Height......................... 4'1"
Weight, Approximately.................. 2600 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00
All machines/equipment subject to prior sale.
