5.5HP submersible water pump, deep bore well, 35GPM

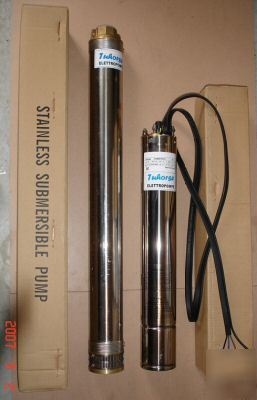

On display is a Brand New, in original boxes, clean water, deep bore well pump + motor. The motor is 5.5HP, 460 volt 3 phases, (3 Hot Wire + 1 Ground Wire). This pump is for 4" Well.
TH-VC-20 Specifications:(Pump + 3 Phase Motor)
* Just slightly under 4â€diameter (95mm), meet industrial standard, stainless steel housing
* Water outlet (discharge): 1 ½â€(1.5 inch)
* Recommended to be used in 200ft to 550 feet for optimal performance vs cost
* Flow at typical depth: 29Gpm @ 285', 25Gpm @ 360', 19Gpm @ 500', 13.2Gpm @ 550'
* Heavy duty 4â€oil cooling submersible motor for long lasting
* 5.5HP (4kw), 3 phase Motor.( 3 hot wires + 1 ground wire )
* Manufactured under ISO 9001:2000
* Confirm to international standard of IEC34-ICE
* Net weight 56Lb.(26Kg); Net length: 60â€(1525mm)
Packaging: Pump and Motor are packed in two original boxes separately. It takes only 10 minutes to connect the pump and the motor together.
This series of pumps are multistage centrifugal pumps designed for permanently immerse operation. The motor is connected to the pump by means of a support designed in accordance with NEMA standard. The impeller, supported by the motor shaft, rotates inside vane diffusers which transfer the liquid leaving each impeller towards the suction opening of the next. Once the liquid has passed through the impellers, it is expelled via the delivery opening. Each impeller and its respective vane diffuser constitutes a pumping stage which, according to the operating principle of centrifugal machines, generates a pressure increase in the fluid that added to each subsequent pressure increase induced by the other stages in series.
These pumps are suitable for pumping clean water and fluids with a sand content of less than 150g/cbm. Their high performance and working dependability make them suitable for civil use and different industrial uses, such as automatic distribution of water in conjunction with surge tanks, irrigating gardens, in washing and pressure-boosting systems and fire-fighting purposes.
A long power cable from the pump to the Control box is not included.
