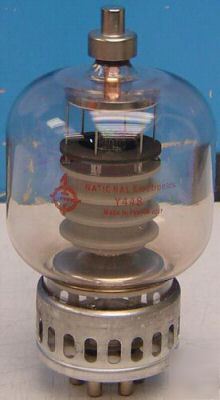

National Y448/4PR1000A Radial-Beam Pulse Tube for Pulse Modulator, Amplifier and Oscillator Service
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Richardson Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Y448 Description: The Y448 is equivalent to a 4PR1000A. It was modded for longer life for an SLAC modulator.
Link to the 4PR1000A Datasheet: 4PR1000A Datasheet
The 4PR1000A is a pulse tetrode intended for use in pulse modulator, pulsed-amplifier, and pulsed-oscillator service. The compact, high vacuum radial-beam tetrode, incorporating a graphite anode and non-emitting grids, is recommended for use in new equipments where high voltage, high current, or high duty factor is encountered.
Cooling of the tube is accomplished by radiation from the anode and by circulation of forced-air through the base and around the envelope. Cooling can be simplified by the use of the SK-510 Air System Socket and the SK-506 Air Chimney.
The 4PR1000A is specially designed for medical MRI applications where high noise immunity and high stability are required.
Specifications (for 4PR1000A):
Anode Current (A) Maximum: 8.0
Anode Voltage (kV) Maximum: 30
Peak Anode Voltage (kV): 30.000
Peak Cathode Current (A): 8.000
Typical Anode Current (A): 8.000
Typical Anode Dissipation (kW): 1.000
Typical Anode Voltage (V): 30,000
Typical Power Out (kW): 220.000
