66 ton aida #NC1-6 single crank gap frame press, 1986

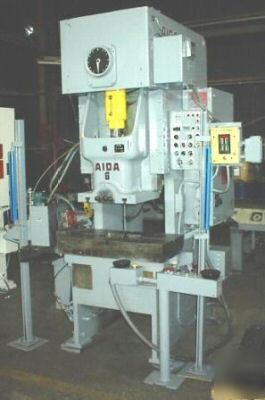

66 Ton AIDA #NC1-6 Single Crank Gap Frame Press, new 1986
Shut Height Over Bolster (SDAU): 12.6",
Slide Adjustment (Motorized): 2.75",
Bed Area: 34.25" L-R x 15.75" F-B,
Slide Face Area (T-Slotted): 18.9" L-R x 15.8" F-B,
Speed (Variable): 60 - 120 SPM,
Pneumatic Wet Clutch and Brake with Selector Controls,
(2) Air Counterbalance Cylinders to Slide,
Hydraulic Overload Protection,
Dimensions, Approx. 51" L-R x 51" F-B x 105" H
