80 gallon northland reactor - t-316 s/s - 42.7/14.3 psi
phone: (***)-831-8485 - fax: (***)-831-8414

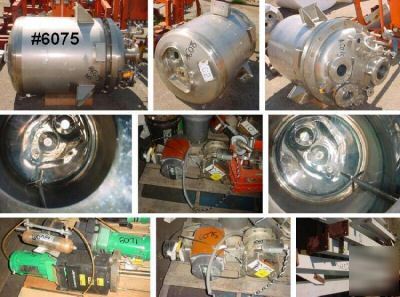

80 GALLON NORTHLAND REACTOR - T-316 S/S - 42.7/14.3 PSI JACKET
1 - used approx. 80 gallon Northland Stainless, Inc. Reactor
T-316 stainless steel (8 ga.) inner shell, inner top head and inner bottom head
T-304 stainless steel jacket shell and jacket head
Johns-Manville 814 insulation and stainless steel sheathing
T-316 stainless steel flanges and couplings
28 in. ID x 34 1/2 in. straight side
Shell MAWP 42.7 psi @ 176 deg. F. Min DWT -20 deg F @ 42.7 psi.
Stainless jacket MAWP 14.3 psi @ 176 deg. F.
Northland serial #957009. National Board #1912
Bolted dish top with misc. inlets including 6 in. flanged opening for agitator drive,
1 3/4 in., 4 in. + addl. small inlets
0.5 HP Lightnin Vektor drive. UL listed. 230/460V, 1725 RPM
Vektor model V5S37, serial #95/E35630
Stainless steel shaft inside vessel with 3 pitched turbine blades and stabilizer ring
Shell, head & jacket thickness .165 in.
Lug mounted with structural supports (included)
Approx. 3 in. center bottom outlet, approx. 2 1/2 in. bottom outlet
PDF Drawing available upon request
