York 400 ton centrifugal liquid chiller
York 400 Ton Centrifugal Liquid Chiller
This unit is one of the two units that were used at an approx. 400 bed Medical Center for air-conditioning the entire building. First unit has already been sold. Similar new York units cost around $110,000 each ($275/ton).
Current unit has been completely refurbished at a cost of approximately $50,000. Following items were upgraded:
· York Solid State Motor Starter (brand new on the system)

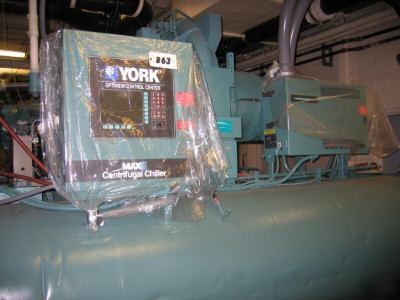

· York Control Panel (brand new on the system)

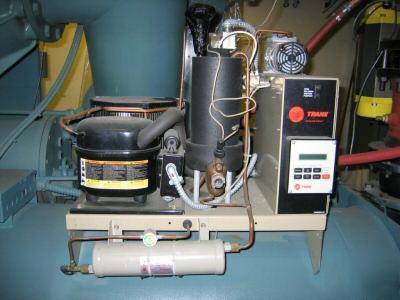

· TRANE Purifier Purge (brand new on the system)

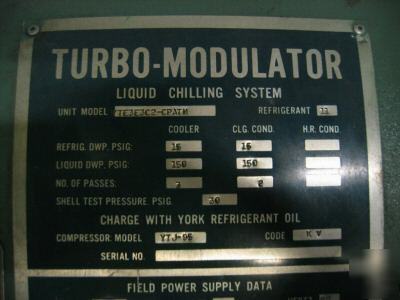

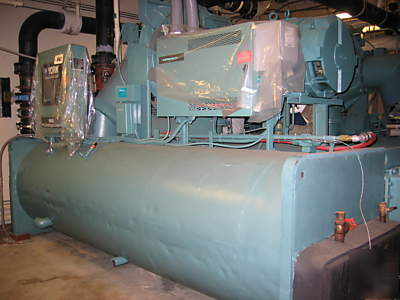

York 400 Ton 385HP Motor Centrifugal Liquid Chiller with Turbo Modulator
Design Load Conditions Per Unit:
Cooling 700 GPM of Water from 57.7F to 44F
Condenser Water 1050 GPM from 85F to 96F
Refrigerant: Before refurbishment use to be R11 which was drained out at the time of refurbishment. Currently there is very little or none in the chiller and hence transportable.
Testing after Refurbishment: Eddy current test was performed by Emcore Service (contractor) after refurbishment. Test results not available due to closure of Medical Center.
York Solid State Motor Starter Information
Serial No: ELR – 002, EMR – 030
York Control Panel info for both the units
TRANE Purifier Purge Information
* Wiring Diagram YM Control Panel NE MA 1 YK/YK Drawing # 035-15994-000
* Diagram Connection Spectrum Panel Retrofit to YT Drawing # 075-37826-027/-028
* Drawing Kit Retrofit Optiview Graphic Control Center YT Drawing # 075-37826-029
* Kit Transformer 1.5 KVA Solid State Starter Drawing # 075-00382B
* Field Wiring Drawing # 035-16291C Rev A.
* Field Wiring Drawing # 035-14033C Rev C.
* Field Wiring Drawing # 035-16290C Rev –
* Elementary Diagram Drawing # 035-16286D Rev G.
Accessability: Recently one unit was de-installed and transported to an International destination Unit is lying in a temporary room made next to drive way on ground floor. Wall has been cut and boarded due to de-installation of first unit Unit can be slided out to driveway and loaded to truck or container easily.
