New thomson super 4 super ball bushing linear bearing -

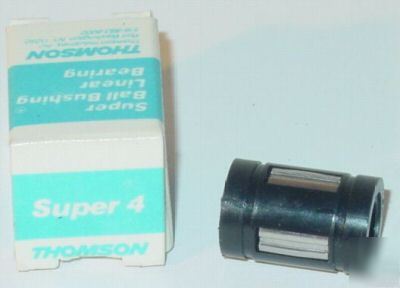

This listing is for a bearing.
* Make: Thomson (Part of Danaher Motion Controls)
* Super Ball Bushing Linear Bearings
___________________________________________________________________________________
Super Ball Bushingâ„¢ bearings offer three times the load capacity or twenty seven times the life of conventional linear bearings. Industry standard self-aligning Super Ball Bushingâ„¢ bearings ease installation and minimize wear from minor bore misalignment. Super Ball Bushingâ„¢ bearings can achieve speeds up to 10 ft/s and accelerations up to 450 ft/s
2 without the derating factors commonly found in linear guide products. With a coefficient of friction as low as .001, Super Ball Bushingâ„¢ bearings provide a quick, easy replacement for high friction plain bearings. The wear-resistant, engineeredpolymer retainers and outer sleeves reduce inertia and noise in critical, high-speed applications.
Thomson Super Ball Bushing™ bearings are also available factory installed in single or twin pillow blocks. Super Ball Bushing™ bearing pillow blocks are provided with integral, double-acting seals that keep out contaminants and retain lubrication, maximizing system performance and life. Twin versions provide up to twice the load capacity or eight times the life of single versions, allowing the use of smaller and less expensive drives, motors and ball screws. When replacing v-ways and flat-ways, the Super Pillow Block’s low coefficient of friction reduces power consumption and provides important design economies.
Original self aligning precision anti-friction linear bearing with load capacities up to 4,000 lbf, and speed up to 10 ft/sec (3 m/s). Danaher offers the largest selection of sizes.
* A self-aligning capability up to .5 degrees compensating for inaccuracies in base flatness or carriage machining.
* The RoundRail* Advantage combined with the self-aligning feature, eliminating the need for derating factors commonly required for linear guides.
* Travel speeds up to 10 ft/s without a reduction in load capacity.
* Light weight, wear-resistant, engineered-polymer retainers and outer sleeves that reduce inertia and noise.
* Radically floating bearing plates. When installed in an adjustable housing, the Super Ball Bushing bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement.
* A constant coefficient of friction as low as .001.
* The use of smaller, less expensive drive motors, belts, linkages, gears and ball screws, when replacing high friction plain bearings.
* A closed configuration for end supported applications and an open configuration for continuously supported applications.
* Ready to install pillow blocks with double acting seals and an access for lubrication. Installation and downtime is minimized
___________________________________________________________________________________
This is brand new. Guaranteed to be in proper, working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
