Barber colman gear hob spindle plate

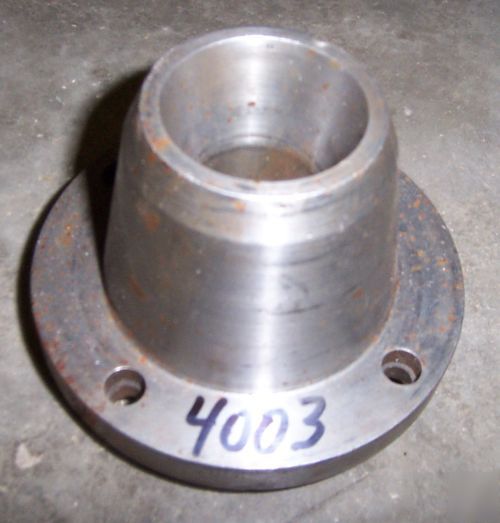

EscrowUnlt © AP6.04003 WE ARE NOW OFFERING A FACE PLATE FOR A BARBER COLMAN GEAR HOB
THE MAIN HUB IS 5-1/2" IN DIA, X 5/8 WIDE
IT HAS A 2" DIAMETER X .520 STEP SHOULDER AT THE REAR
THERE ARE FOUR 3/8 HOLES ON A 4-1/2 BOLT CIRCLE
THERE IS A 1-1/2 ID HOLE AT THE REAR WITH A SMALL PIN TO LOCATE A COLLET
THE OVERALL LENGTH IS 3-7/8" WITH A TAPER AT THE FRONT EDGE THAT IS 2.100 IN DIA.
THIS TAPERS DOWN TO THE 1-1/2" BORE AND THE TAPER IS ABOUT 1.400 DEEP
